Spoolman Home Assistant Integration

This integration integrates Spoolman (https://github.com/Donkie/Spoolman/) into Home Assistant. This enables you to observe your filament spools and in example get notified when a spool runs out of filament.

✨ Features

• Locations in Spoolman are created as devices
• Spools are added to the devices
• Monitoring of filament consumption (used and remaining length/weight)
• Configurable thresholds for info, warning and critical states. This is useful to trigger notifications in HomeAssistant within an automation (see the automation example)
• Enable/disabled archived spools
• Archived spools are grouped into one Archived device
• If a Klipper url is configured, the active spool will have an attribute klipper_active_spool
• Creation of a service spoolman.patch_spool to enable you to change values of a spool from automations

Note

If one of the threshold is exceeded the integration fires an event. The event is named spoolman_spool_threshold_exceeded. Currently there are three thresholds defined: info, warning and critical.

Important

If one of the threshold is exceeded, there is no other event for that particular threshold and spool until restart of HomeAssistant.

🏗️ Installation

Just add this repo to the custom repos in HACS (https://hacs.xyz/docs/faq/custom_repositories/) and you're good to go. You should now see the integration in HACS where you can download the latest version.

🛠️ Usage

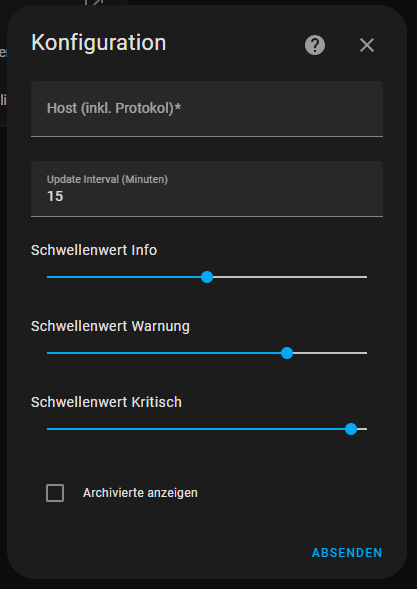

Just add a new integration for Spoolman and fill in the URL to your Spoolman instance, like this:

You should now see a new integration entry with one device per location (your spoolman instance) and all archived spools grouped in an own device:

For every spool there is a sensor created with the exact color you've provided. Additionally the integration tracks your current weight and lengths.

All other information provides by Spoolman are stored in the attributes of the sensor:

Important

Your spool needs at least a name and a material to get added to Home Assistant.

Naming of entities

Every spool is created with an entity id like sensor.spoolman_spool_[id] to prevent mixing and mangeling when spools having the same name and to have a fixed prefix spoolman to get the entitites conveniently and don't have conflicts with other integrations.

Usage in cards

You can use the default entities card for this:

Or auto-entities-card for getting all entities by this integration dynamically: https://github.com/thomasloven/lovelace-auto-entities

And a mushroom-template-card card for example. https://github.com/piitaya/lovelace-mushroom/blob/main/docs/cards/template.md

A simple card utilizing mushroom-template-card and auto-entities to dynamically show all spools could look like this:

type: custom:auto-entities
filter:
  include:
    - integration: '*spoolman*'
      sort:
        method: attribute
        attribute: location
        reverse: false
      attributes:
        archived: false
      options:
        type: custom:mushroom-template-card
        vertical: false
        icon_color: '#{{ state_attr(entity, ''filament_color_hex'') }}'
        icon: mdi:printer-3d-nozzle
        badge_icon: |
          {% if state_attr(entity, 'archived') == true %}
            mdi:archive
          {% elif state_attr(entity, 'klipper_active_spool') == true %}
            mdi:check-circle
          {% endif %}
        badge_color: |
          {% if state_attr(entity, 'archived') == true %}
            orange
          {% elif state_attr(entity, 'klipper_active_spool') == true %}
            green
          {% else %}
            default_color
          {% endif %}
        primary: |
          {% set location = state_attr(entity, 'location') %} {% if location %}
            {{ state_attr(entity, 'filament_name') }} ({{ location }})
          {% else %}
            {{ state_attr(entity, 'filament_name') }}
          {% endif %}
        secondary: '{{ (state_attr(entity, ''remaining_weight'') | float)  | round(2) }} g'
        tap_action:
          action: more-info
sort:
  method: attribute
  attribute: klipper_active_spool
  reverse: true
card:
  type: grid
  columns: 2
  square: false
card_param: cards

This card does:

• Filtering out all archived spools, if not filters all archived spools have an orange badge
• Sort by klipper_active_spool (only when Klipper url is set in config, active spools is always the first one with green badge)
• Sort by location from A-Z
• Shows the location after the spool name
• Click on an entity opens the more_info dialog

Automation example

An automation in Homeassistant could be something like this:

alias: Filament almost empty
description: ""
trigger:
  - platform: event
    event_type: spoolman_spool_threshold_exceeded
condition: []
action:
  - service: notify.notify
    data_template:
      title: >-
        {{ trigger.event.data['threshold_name'] | capitalize }}: Spool almost
        empty
      message: >-
        The spool {{ trigger.event.data['spool']['filament']['vendor']['name']
        }} {{ trigger.event.data['spool']['filament']['name'] }} {{
        trigger.event.data['spool']['filament']['material'] }} has reached {{
        trigger.event.data['spool']['used_percentage'] }}% usage
mode: restart

You can use the following data within your templates:

{
    "entity_id": self.entity_id,
    "spool": spool,
    "threshold_name": threshold_name,
    "threshold_value": config_threshold,
    "used_percentage": used_percentage,
}

A spool has this structure (according to the OpenAPI description of Spoolman):

{
    "id": 1,
    "registered": "2023-09-22T19:52:36Z",
    "first_used": "2023-09-23T04:22:26.975000Z",
    "last_used": "2023-09-30T04:09:34.242017Z",
    "filament": {
        "id": 1,
        "registered": "2023-09-22T19:52:07Z",
        "name": "Black",
        "vendor": {
            "id": 1,
            "registered": "2023-09-22T19:43:26Z",
            "name": "Jayo"
        },
        "material": "PLA+",
        "price": 15.99,
        "density": 1.24,
        "diameter": 1.75,
        "weight": 1100,
        "article_number": "B0BJ1FR86Y",
        "comment": "",
        "settings_extruder_temp": 210,
        "settings_bed_temp": 60,
        "color_hex": "000000"
    },
    "remaining_weight": 4.468290721106769,
    "used_weight": 1095.5317092788932,
    "remaining_length": 1498.1446855790216,
    "used_length": 367313.8366728618,
    "location": "Lager",
    "lot_nr": "1704306141A",
    "archived": false
}

Home Assistant services

This integration creates services to be used in automations:

spoolman.patch_spool

This service is used to change values and properties if a spool. The data must match the data for the Spoolman API

Important

You can't update remaining_weight and used_weight in one update. You can only set one of them. Spoolmann calculates the missing field by itself.

service: spoolman.patch_spool
data:
  id: 45
  first_used: "2019-08-24T14:15:22.000Z"
  last_used: "2019-08-24T14:15:22.000Z"
  price: 20
  initial_weight: 200
  spool_weight: 200
  location: Shelf B
  remaining_weight: 200
  lot_nr: 52342

Extra fields

Spoolman allows the definition of extra fields. You can use these to built your own automations. They are available in the attributes of the spool, with the prefix extra_.

You can for example use these to store additional information about the spools, like their humidity measured by a smart home sensor in Home Assistant. This is an automation example to update a field humidity, based on a sensor in Home Assistant, denoted by a custom field sensor, for all spools every 15 minutes.

alias: Update spoolman
description: ""
mode: single
triggers:
  - trigger: time_pattern
    minutes: /15
conditions: []
actions:
  - repeat:
      for_each: "{{ integration_entities('spoolman') }}"
      sequence:
        - if:
            - condition: template
              value_template: "{{ state_attr(repeat.item, 'extra_sensor') is not none }}"
          then:
            - action: spoolman.patch_spool
              data:
                id: "{{ state_attr(repeat.item, 'id') }}"
                extra:
                  sensor: "{{ state_attr(repeat.item, 'extra_sensor') }}"
                  humidity: >-
                    {{ states("sensor."+state_attr(repeat.item, 'extra_sensor')) }}

You can then easily use this information in your cards, for example to show the properties of your spools using the auto-entities card in combination with the multiple-entity-row card:

Contributing

If you're developer and want to contribute to the project, please feel free to do a PR! But there are some contraints I want to enforce by convention (currently I evaluate the possibility to enforce this by rules. If you have a good hint, please let me know 🎉):

• Please merge your PR to the dev branch. PRs against main will be rejected.
• Branch main only reflects the latest state of the integration
• Branch dev reflects the next state of the integration
• Please make use of conventional commits. This ensures the build pipeline works together with semantic release and your PRs will start a new release.
• I would recommend using visual studio code (since there is everything working out of the box)
